LX- 6E Auto Bottle Blowing Machine Advantages

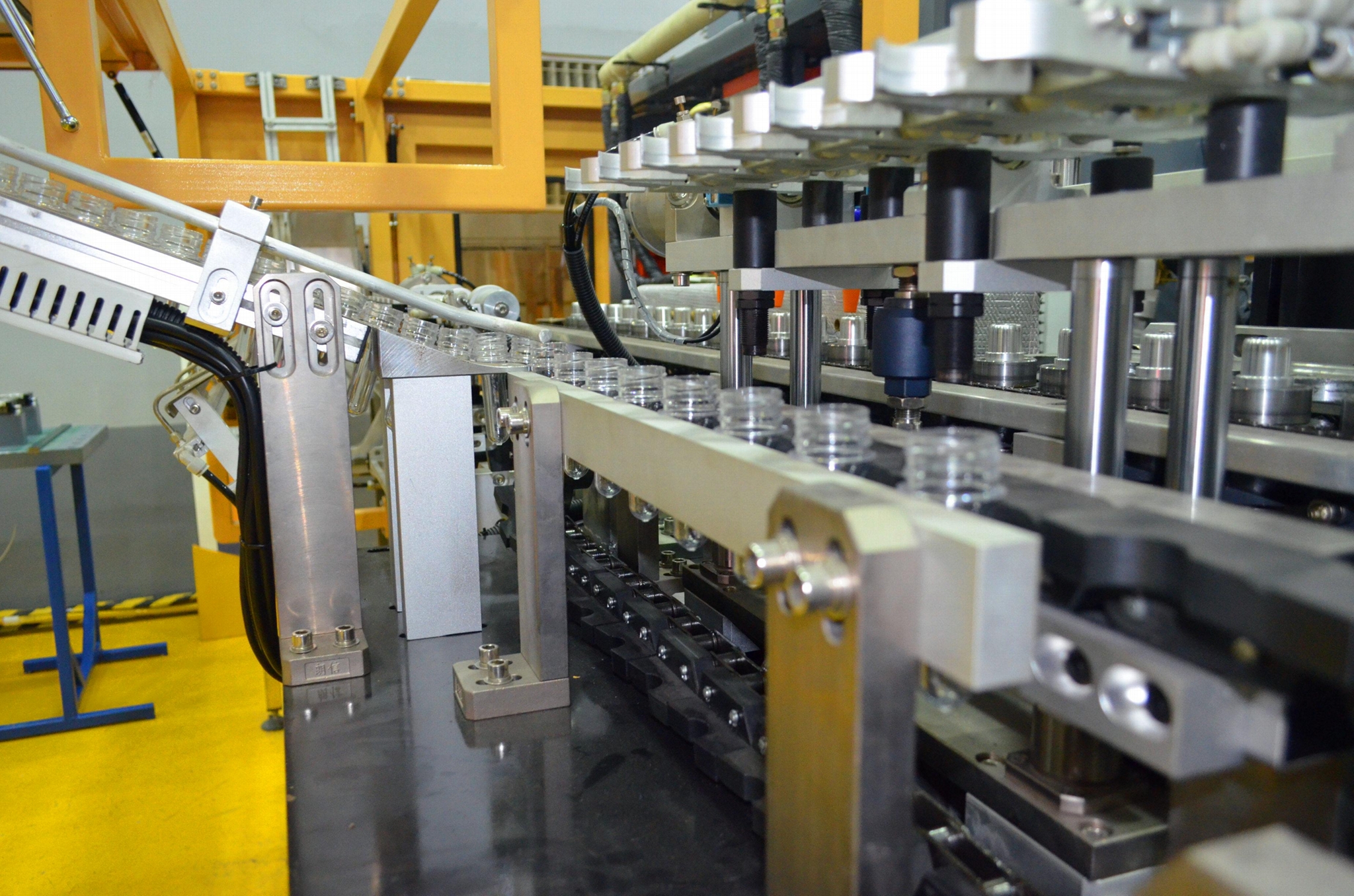

1 New Auto Preform Unscrambler System
●Our machine adopts one-way preform-feeding structure and preform-separating is powered by servo motor structure that helps solve the preform block and abrasion problem.
●There is one photoelectric sensor to monitor the preform-loading and preform-separating process that will warn the operator to add the preforms into the hopper when lacks preform instead of stopping the machine.
2 New Heating System
lPerfect heating system design helps decrease the power consumption.
lSpecial oven design helps power saving and is easy maintain.
lEach lamp’s position and temperature can be adjusted according to clients’ needs.
lCooling water circular system helps keep the oven temperature constant.
3 The Application Of Servo System On Main Transmission
The transmission system adopts the special chains and is powered by servo motor, which helps orientate the preform heating base quickly, accurately and steadily when the machine starts running.
4 Servo Technology Innovation On Clamping System
●Servo technology is applied in the clamping system, which can shorten the mould-clamping time and improve productivity.
●High pressure mold-locking unit helps solve the swelling mold and big joint line problems.
5 Easy To Change Bottle Shape
Drawer type mold structure design makes it easy to change the mold. Within one hour, a mold can be replaced under the condition of the same bottleneck diameter.
6 Intelligent Human-Machine Interface
lHuman-machine interface control, easy operating and monitor.
lLive production information supervision and auto record production data everyday
lFailure warning and troubleshooting.
Technical parameter
|
|
Item
|
LX－6E
|
|
Main machine
|
Maximum Bottle capacity
|
700ml
|
|
|
Maximum bottle diameter
|
Φ68mm
|
|
|
Neck diameter
|
Φ18~38mm
|
|
|
Maximum bottle height under neck
|
<245mm
|
|
|
Maximum preform height under neck
|
<115mm
|
|
|
Clamping stroke
|
90mm
|
|
|
Bottom die stroke
|
50mm
|
|
|
Bottle pitch
|
76.2mm
|
|
|
Maximum output rate (bph)
|
9,600
|
|
|
Number of molds
|
6
|
|
Heating part
|
Number of heating modules
|
4
|
|
|
Number of heating lamps
|
8
|
|
|
Number of preform bases
|
108
|
|
Electric part
|
Voltage
|
380V
|
|
|
Frequency
|
50
|
|
|
Service power
|
30~50kw/h
|
|
|
Installation power
|
75kw
|
|
Air source
|
Low pressure
|
1Mpa
|
|
|
Low pressure air consumption
|
2m³/min
|
|
|
High pressure
|
3.5Mpa
|
|
|
High pressure air consumption
|
6m³/min
|
|
Chilled water
(Water temperature ≤18℃)
|
Pressure
|
2~4bar
|
|
|
Flux
|
9m³/h
|
|
Weight
|
G.W.
|
Around 7,000kg
|
|
Dimension
|
Main machine (L×W×H)
|
4500×2400×2300mm
|
|
|
Preform unscrambler(L×W×H)
|
2800×2800×3000mm
|
|
Remarks:
* 9600bph output rate base on 555ml, 18 gram C’estbon water bottle.
* High pressure air consumption depends on PET bottle volume, altitude etc.
|
|
