LX- 2EXL Auto PET Bottle Blowing Machine Feature

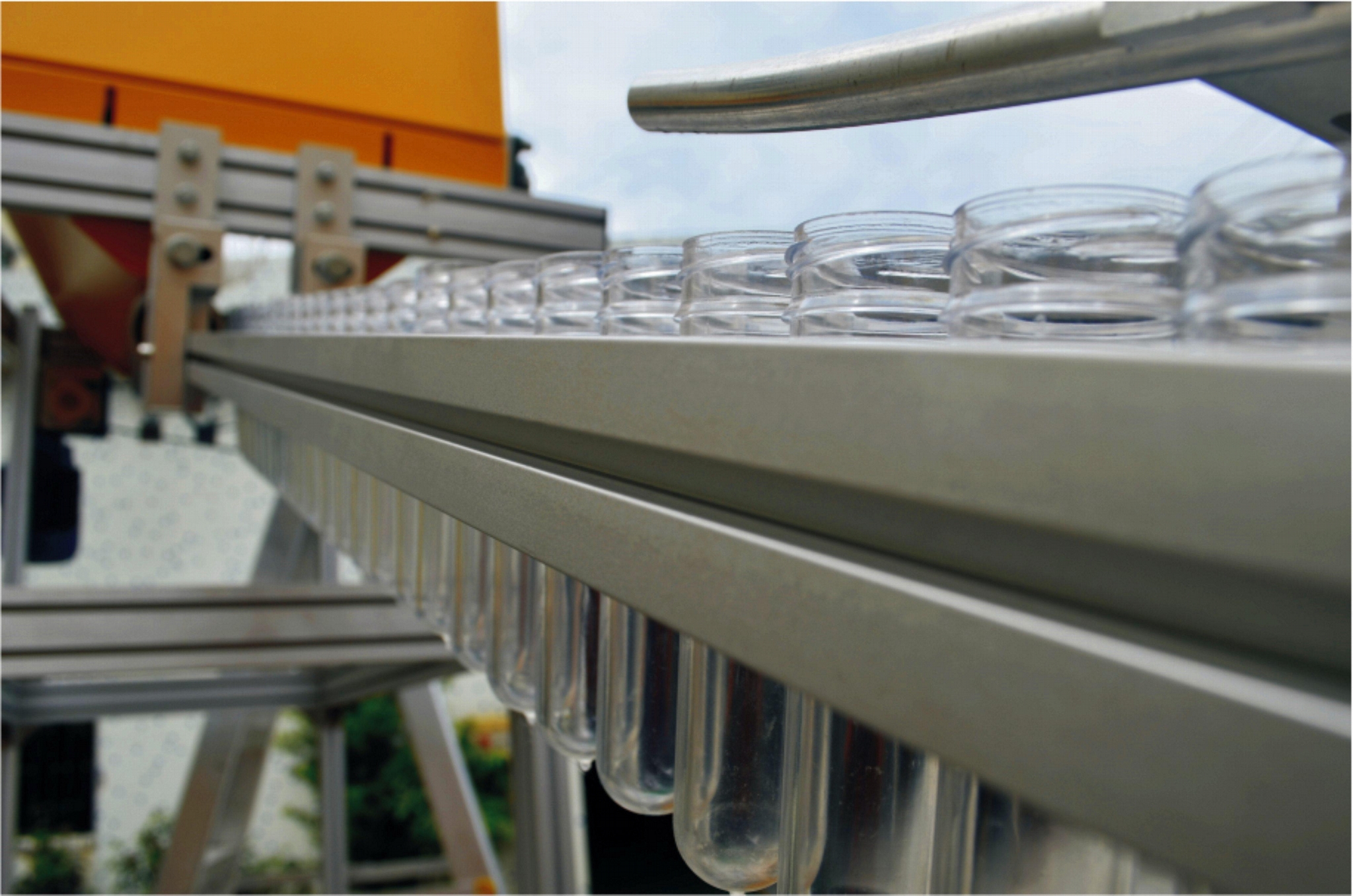

1.1 New auto preform unscrambler system
- Preforms are loaded and unscrambled automatically, which helps prevent the second pollution.
- The special-designed hopper can store more preforms.
- The distribution of the preforms can be adjusted according to different kinds and different bottle capacity, which helps save power. .
- One-way preform-loading and preform-separating structure helps solve the preform block and abrasion problem.
1.2 New Heating System
l Perfect heating system design helps decrease the power consumption.
l Special oven design helps power saving and easy maintain.
l Each lamp’s position and temperature can be adjusted according to clients’ needs.
l Cooling water circular system helps keep the oven temperature constant.
1.3 Technology innovation on clamping system
- The machine adopts one single cylinder to drive the crank to control the clamping system structure. The swelling mold and big joint line problems can be solved with the effect of pressurized steel plates.
1.4 Intelligent human-machine interface
l Human-machine interface control, easy operating and monitor.
l Live production information supervision and daily record of
production data.
l Failure warning and troubleshooting.
1.5 Stability
l The electric, pneumatic component, seals, bearing, gear motor and other main parts of the machine are all from worldwide famous brands in order to ensure the machine reliability and lifetime. We offer one-year guarantee and lifelong maintain for our machines.
LX-2EXL machine main parameter
|
|
Item
|
LX－2EXL
|
|
Main machine
|
Maximum Bottle capacity
|
6000ml
|
|
Maximum bottle diameter
|
Φ180mm
|
|
Neck diameter
|
Φ18~45mm
|
|
Maximum bottle height under neck
|
<350mm
|
|
Maximum preform height under neck
|
<200mm
|
|
Clamping stroke
|
200mm
|
|
Bottom die stroke
|
60mm
|
|
Bottle pitch
|
200mm
|
|
Maximum output rate (bph)
|
1,800
|
|
Number of molds
|
2
|
|
Heating part
|
Number of heating modules
|
2
|
|
Number of heating lamps
|
12
|
|
Number of preform bases
|
54
|
|
Electric part
|
Voltage
|
220/380V
|
|
Frequency
|
50/60Hz
|
|
Service power
|
30kw/h
|
|
Installation power
|
60kw
|
|
Air source
|
Low pressure
|
1Mpa
|
|
Low pressure air consumption
|
2m³/min
|
|
High pressure
|
3.5Mpa
|
|
High pressure air consumption
|
5m³/min
|
|
Chilled water
(Water temperature ≤18℃)
|
Pressure
|
2~4bar
|
|
Flux
|
6m³/h
|
|
Weight
|
G.W.
|
Around 7,000kg
|
|
Dimension
|
Main machine (L×W×H)
|
3800×2300×2600mm
|
|
Preform unscrambler(L×W×H)
|
2500×2500×3200mm
|
|
Remarks:
* 1800bph output rate base on 4500ml, 110 gram C’estbon water bottle.
* High pressure air consumption depends on PET bottle volume, altitude etc.
|
Main electric component list
|
No.
|
Name
|
Origin
|
Brand
|
|
Electric/control component
|
|
1
|
Air switch
|
France
|
SCHNEIDER (TE)
|
|
2
|
Contactor
|
|
3
|
Button
|
|
4
|
Preform-infeed check
|
Taiwan
|
RIKO
|
|
5
|
Solenoid valve
|
Taiwan
|
AIRTAC
|
|
6
|
Touch screen
|
Taiwan
|
WECON
|
|
7
|
PLC
|
Japan
|
OMRON
|
|
8
|
Motion driver
|
|
9
|
Switch power
|
Taiwan
|
MV
|
|
10
|
Servo motor
|
Japan
|
YASKAWA
|
|
11
|
Servo driver
|
|
12
|
Heating module
|
Germany
|
SEMIKRON
|
|
Valves/adaptor
|
|
1
|
Pre-blowing valve
|
UK
|
NORGREN
|
|
2
|
2nd blowing valve
|
|
3
|
Exhaust valve
|
|
4
|
One-way valve
|
|
5
|
Pressurize clamping valve
|
|
6
|
Cylinder control valve
|
|
7
|
Cylinder
|
Taiwan
|
AIRTAC
|
|
8
|
Mold-clamping slide-way
|
Taiwan
|
ABBA
|
|
Remarks: all above component are imported with original packaging. Longsun has the right to change the default parameter according to the marketing change or customer special requirement without further notification, a 5% change of the equivalent parameter will be allowable against the marketing trend and the spare parts supply condition!)
|
